41BDL7224L - Signage Solutions L-Line 7000 Series 40.6"

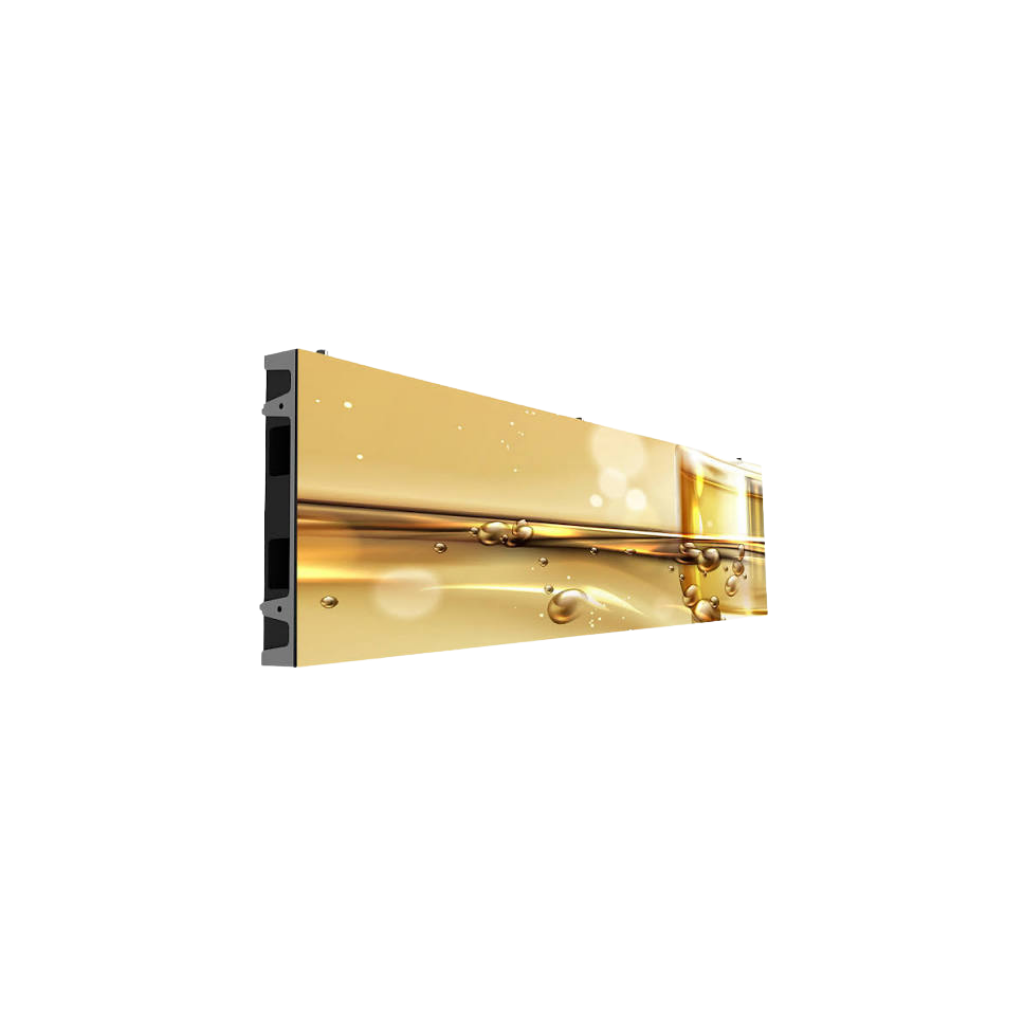

The Philips Signage Solutions L-Line 7000 Series 41BDL7224L is a premium, high-brightness Direct View LED (DVLED) digital signage display cabinet designed for seamless, highly customizable video walls. It features a unique modular design intended for creative architectural installations.

Key Specifications & Performance

• Display Size & Dimensions: Measures 1000 x 250 mm (yielding a viewable diagonal size of 40.6 inches) with a height of 25 cm.
• Resolution & Pitch: Provides a native resolution of 416 x 104 pixels with a high-density fine 2.40 mm pixel pitch (94.49 mil).
• Brightness & Contrast: Delivers a standard brightness of 1200 nits (peaking at 1600 nits), making it highly legible under strong indoor ambient lighting, supported by a 6,500:1 dynamic contrast ratio.
• Color Depth: Features standard 14-bit internal processing for exceptionally smooth color gradients.

Standout Features

• Endless Design Flexibility: Built to form custom geometric configurations, including seamless L-shape sharp corners and distinct convex or concave curves using optional bevelled corner configurations.

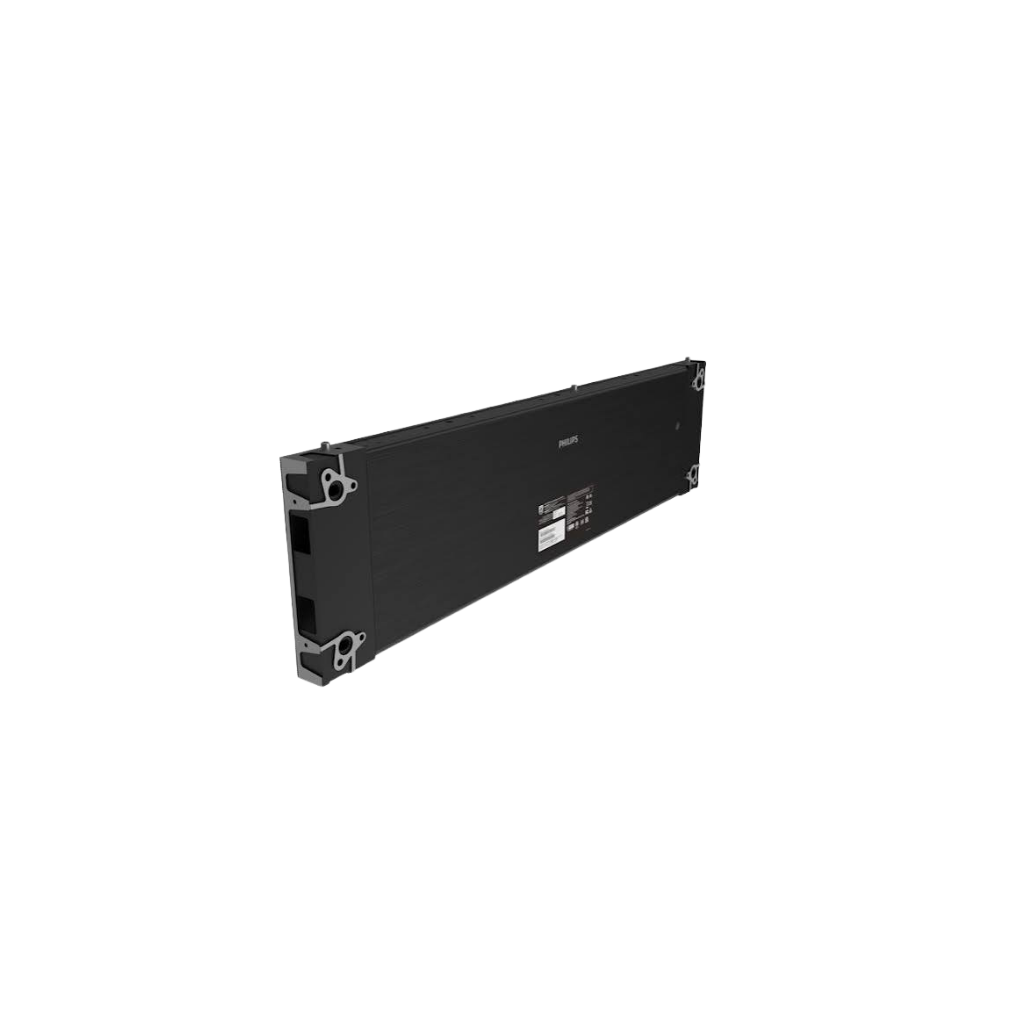

• Dynamic Panel Connect: Employs flexible physical alignment pins and versatile multi-directional wiring openings to chain data and power seamlessly across panels.
• Philips Active Health Monitoring: Features real-time diagnostics (working both online and offline) that allow administrators to rapidly isolate the exact sub-component or pixel cluster failing for easy maintenance.
• Environmental Protection: Equipped with IP30 ingress protection and a protective conformal coating that insulates the internal electronics against dust, moisture, and corrosion.
